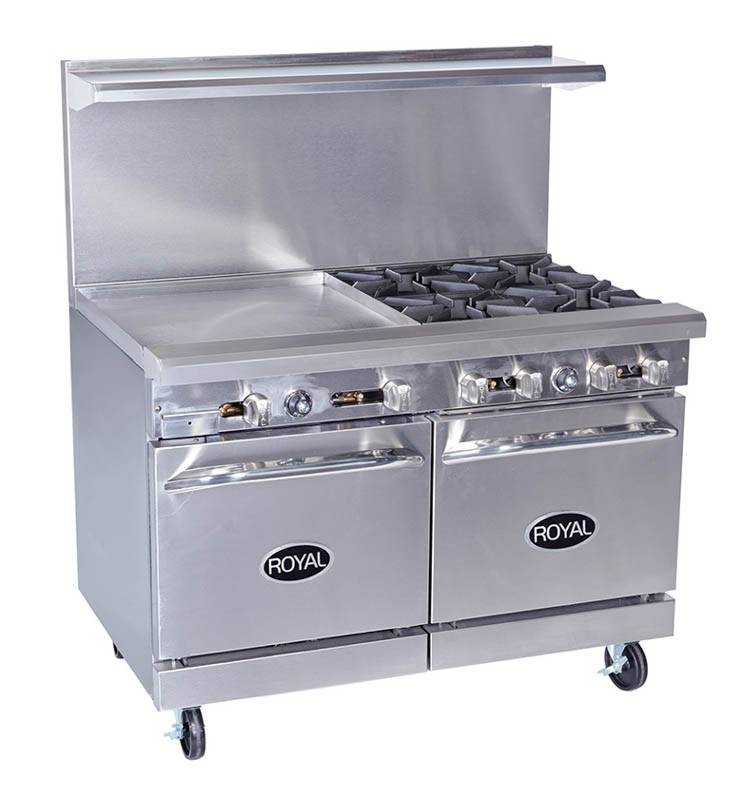

Royal Range 48" Restaurant Range: RR-4G24 with (4) Open Burners, 24″ W Griddle BTU 214,000

Standard Features

• Stainless steel front, sides, landing ledge, back guard, shelf, valve cover and kick plate

Standard Oven

• Porcelain finish on contact surfaces
• Standing pilot with 100% safety shut down
• “U” Stainless Steel Burner rate at 35,000 BTU/hr. (26″ oven), 27,000 BTU/hr. (20″ oven)

Open Burners

• 2 piece lift off cast iron burner rated at 30,000 BTU/hr.
• 12″ x 12″ cast iron grate with double angled slope for efficient heating

Griddle

• Highly polished 3/4” thick griddle plate with 3” wide grease trough
• 20,000 BTU/hr. steel burner every 12”

Convection Oven

• 2 speed (1725/1140 rpm) 1/2 HP motor. 120V, 50-60 Hz, single phase, 8 amps
• 30,000 BTU/hr. “U” Stainless Steel burner with automatic ignition
• 3 heavy duty chrome racks with 5 position adjustment
• Thermostat adjustable from 150° to 500° F

Radiant Broiler

• Stainless steel burners rated at 15,000 BTU/hr. located every 6”
• Heavy cast iron radiants
• Reversible cast iron top grates
